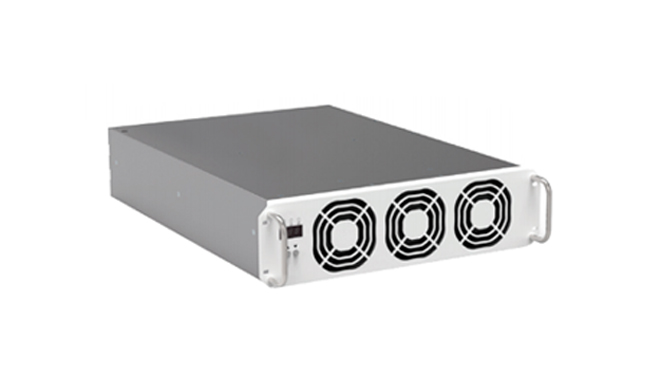

30KW AC/DC Charging Module

This AC - DC charging module boasts high efficiency and power density. With a wide voltage range, it features a high power factor, minimal electromagnetic radiation and interference. Its top - notch protection and reliability make it ideal for fast - charging various EVs. It's energy - efficient, eco - friendly, and sets the international standard.

View Manual

Product Features

96.6%

High Efficiency
01
150 - 1000Vdc

Super Wide Output Voltage
02
High Compatibility

Suitable for all electric vehicles fast charging
03
High Protection

Built-in bleeder circuit,Anti-backflow technology
04

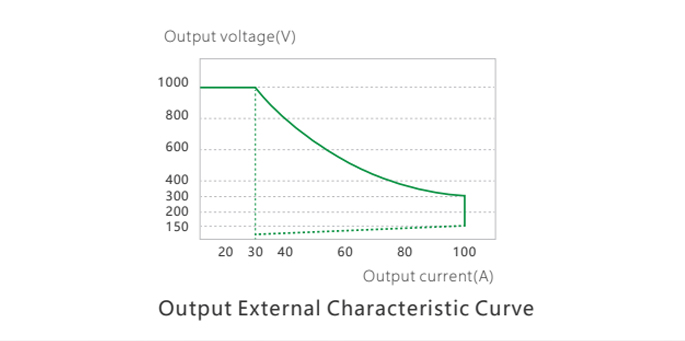

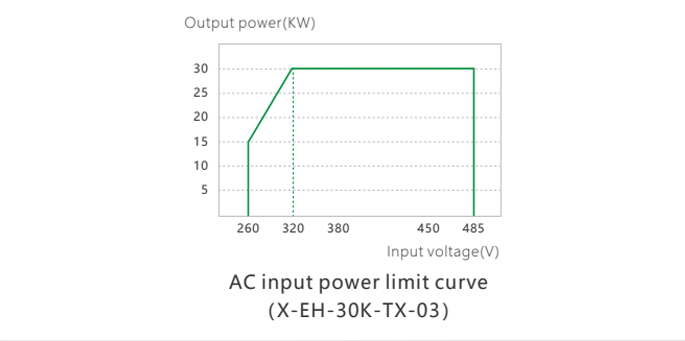

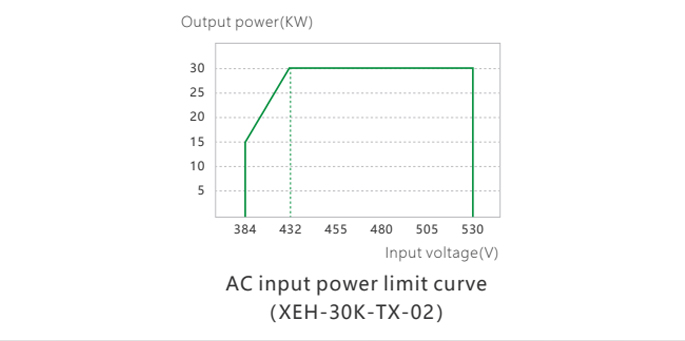

Product curve chart

Product Specifications

Input	Product Model	384~530 Vac (ETL Version)	260~485 Vac (CE version)
	Input voltage range	384~530 Vac (ETL Version)	260~485 Vac (CE version)
	Input frequency range	45~65Hz
	Power factor	≥0.99
	Total harmonic distortion	<5%
	Peak efficiency	≥96%
Output	Constant power range	30KW (300~1000V)
	Output current range	0~100A
	Current stability accuracy	≤±1%
	Voltage regulation accuracy	≤±0.5%
	Current balancing accuracy	≤±3%
	Communication interface	CAN, Max. 60
Output High Voltage	Output voltage range	150~1000Vdc
	Rated output voltage	1000Vdc
	Rated output current	30A
	Current limit adjustment range	0.5A≤I≤60A
Output Low Voltage	Output voltage range	150~500Vdc
	Rated output voltage	500Vdc
	Rated output current	60A
	Current limit adjustment range	0.5A≤I≤100A
Product characteristics	Size (WDH)	300x437x84mm
	Weight	≤17kg
	Fan noise	<50dB (1 m from the device)

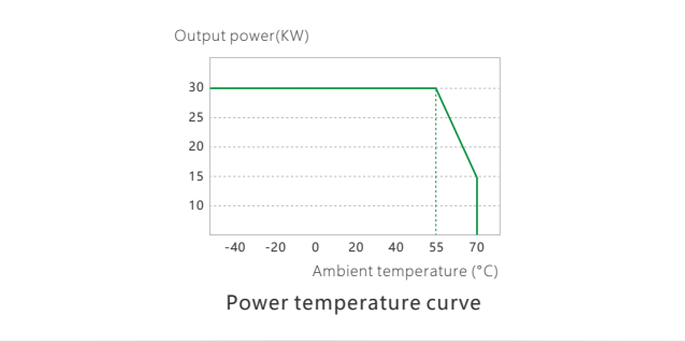

Environmental condition	Ambient temperature	-40°C ~ 70°C, The derated function is used when the temperature is above 55°C
	Storage temperature	-40°C ~ 85°C, Humidity :5% ~ 90%, no condensation
	Class of protection	IP20
Protection function	Short circuit protection	After short circuit protection, the module has no output and can be restored manually. 1 short circuit lock mode
	Output overvoltage protection point	1050V±10V (manual recovery, starts locking mode after four times overvoltage)
	Overtemperature protection	Automatic protection starts when detection temperature reaches the preset value. After protection, there is no output. After recovery, you need to start the system by running a command

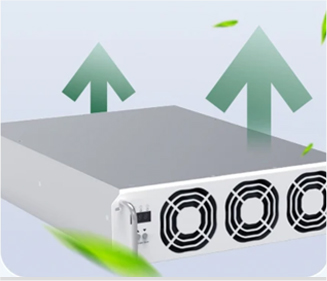

High Efficiency, Low Power Consumption

With peak efficiency up to 96.6%, power consumption < 10W, this 30KW power module ensures fast and efficient charging experience, improving CPO operational cost and sustain long-term profitibility.
Ultra Wide Output Range

The module supports wide output range, allowing to provide a flexible range of output voltages to accommodate various EVs with a single solution for fleets with various vehicle types. Adaptable to evolving EV technologies without needing hardware upgrades.
High Compatibility

The module is suitable for all electric vehicles fast charging such as for low-speed electric vehicles, passenger electric vehicles, electric logistics vehicles, electric buses, electric forklift, electric tractor charging equipment, high voltage electric vehicles.
High Protection

1. Complete protection and warning functions to ensure charging safety in all aspects;
2. Built-in bleeder circuit to improve charging safety;
3. Built-in anti-backflow protection circuit
4. Hot plugging technology to ensure maintenence safety
